316L Stainless Steel Precision CNC Machined Female Threaded Connector

1. Product Overview

This product is a precision CNC-machined female threaded pipe fitting made from a single piece of 316L stainless steel bar stock. It offers excellent corrosion resistance, high structural strength, and long-term stability, making it ideal for demanding applications such as oil & gas pipelines, chemical processing systems, hydraulic equipment, water treatment, and high-pressure fluid transfer systems.

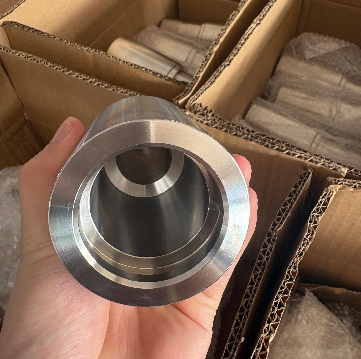

As shown in the images, the surface features a uniform, fine-machined finish with a clean metallic luster. Bulk parts are packed with protective cushioning to prevent scratches and impact damage during transportation.

2. Key Structural Features

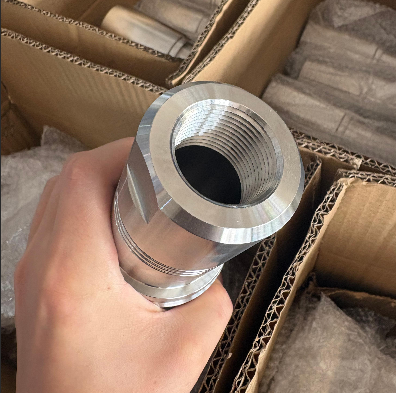

✔ Precision NPT Female Thread

• One end machined with NPT 1-1/2 tapered female thread

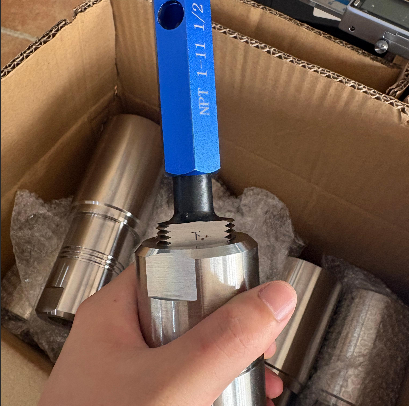

• Each thread is inspected using go/no-go plug gauges

• Accurate thread profile and taper ensure reliable high-pressure sealing

• Suitable for critical sealing pipeline systems

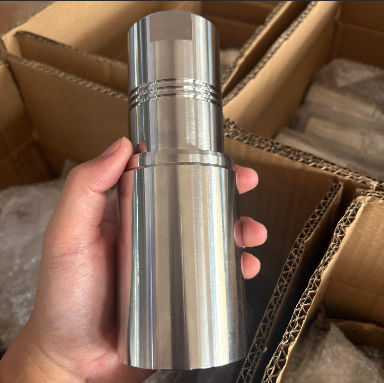

✔ Multi-Groove Outer Diameter Design

• Multiple circumferential machined grooves on the outer body (as shown in images)

• Used for positioning, anti-rotation, and sealing element placement

• Improves concentricity and assembly stability

✔ Stepped Ends with Chamfered Edges

• Double-end stepped structure for precise alignment and assembly

• All edges chamfered and deburred to prevent seal damage

• Smooth internal bore ensures efficient fluid flow

✔ Wrench Flats for Easy Installation

• Symmetrical machined flat surfaces on the outer body

• Enables easy tightening and disassembly using standard tools

• Prevents slipping during installation, improving field efficiency






•


• 3. Material & Manufacturing Advantages

• ✔ Premium 316L Stainless Steel

• Excellent resistance to intergranular corrosion

• Strong resistance to acids, alkalis, and chloride environments

• Suitable for marine, chemical, and high-corrosion applications

• Maintains performance under elevated temperatures

• ✔ Full CNC Precision Machining Process

• CNC turning, boring, milling, threading, and deburring

• Uniform surface finish with high dimensional consistency

• Excellent interchangeability for mass production

• ✔ Strict Quality Control System

• 100% thread inspection using go/no-go gauges

• Dimensional checks on OD, ID, length, and step features

• Ensures consistent sealing performance and assembly reliability






•


• 4. Applications

• Oil & gas pipeline systems

• Chemical processing equipment

• Hydraulic and high-pressure systems

• Marine engineering and offshore structures

• Water treatment and industrial fluid transport






•


• 5. Packaging & Shipment Condition (Based on Images)

• Individual anti-scratch wrapping with protective materials

• Bulk packaging in reinforced cartons with cushioning

• Shock-resistant packaging to avoid surface damage

• Export-ready finish with clean machined surfaces




•
